TKMC-4000
TKMC-4000 400 kWh mobile EV charger
400 kWh · 360 kW
TAICO MC 2026 Catalog v1.3 · Page 8
Why this product
- +Mobile charging
- +AC output
- +Engineering power supply
Who it is for
- Mobile Charger
- AC Output
- Engineering Power Supply
Catalog specification
Technical details
Published from TAICO MC 2026 Catalog v1.3, page 8.
| Battery capacity | 400 kWh |
|---|---|
| Output power | 360 kW |
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| HMI | 10" Touching Screen |
| Charge mode | Single-player / OCPP 1.6J |
| Working temperature | −10 °C to 60 °C |
| Charger cable length | 7 m |
| Charging gun | GB/T ×2 (CCS1 / CCS2 / CHAdeMO) |
| Recharge mode 1 | EV DC Charger |
| Recharge mode 2 | AC 3-phase / 120 kW |
| Size | 3500 × 1750 × 1250 mm |
| Weight | ≈4800 kg |
| Protection level | IP54 |

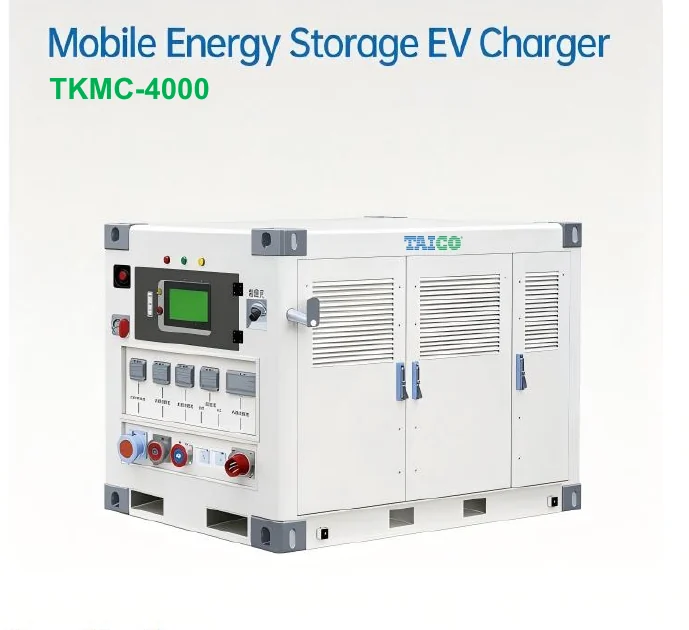

Catalog product photography
Published product view
This catalog image shows TKMC-4000 as published in TAICO MC 2026 Catalog v1.3. Final configuration must be confirmed for the project.
How to choose
Selection criteria in this family.
Required charging power
Published DC output steps from 120 kW to 480 kW. Confirm the vehicle mix and whether AC output is also required at the same deployment.
Deployment type
These systems are larger mobile units. Review published size and weight against transport, access, and operating location constraints.
Connector quantity
Published charging-gun counts increase with model size. Confirm how many vehicles must be served at once.
Compatibility / configuration
Published interface and operating fields.
| Charging gun | GB/T ×2 (CCS1 / CCS2 / CHAdeMO) |
|---|---|
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| Charge mode | Single-player / OCPP 1.6J |
| Charger cable length | 7 m |
Explore by challenge
Related products
Related knowledge
Read the supporting guides.
Buyer guide
Mobile EV Charger Buyer’s Guide: How to Choose a System
A practical buyer's guide to mobile EV charging formats, energy and power requirements, connectors, deployment conditions, and project qualification.
Technical explainer
kW vs. kWh in Mobile EV Charging
Understand the difference between charging power and stored energy, and why both values matter when specifying a mobile EV charging system.
FAQ
Questions for this product family.
Which mobile power system is the usual starting point?
Use the catalog application first: AC output points to TKMC-2000P, engineering power supply to TKMC-4000, and PV-storage charging to TKMC-10000. Then compare published capacity, output, size, and weight.
Where do these specifications come from?
Public product facts are transcribed from TAICO MC 2026 Catalog v1.3. Final operating configuration remains project-specific.
Evidence / documentation
Catalog source
Published specifications for TKMC-4000 are transcribed from TAICO MC 2026 Catalog v1.3, page 8. Request current project documentation for a configuration review.
