Deployment type
Choose this family when the operating procedure requires a self-propelled charger rather than a transported mobile charging system.
Charging Robot →
TKMC-1000
TKMC-1000 EV charging robot
100 kWh · 90 kW
TAICO MC 2026 Catalog v1.3 · Page 6
Why this product
- +Self-propelled mobile charging
Catalog specification
Technical details
Published from TAICO MC 2026 Catalog v1.3, page 6.
| Battery capacity | 100 kWh |
|---|---|
| Output power | 90 kW |
| Output voltage | DC 200–1000 V |
| Output current | 0–150 A |
| HMI | 7" Touching Screen |
| Charge mode | Single-player / OCPP 1.6J |
| Working temperature | −10 °C to 60 °C |
| Charger cable length | 5 m |
| Charging gun | GB/T / CCS1 / CCS2 / CHAdeMO |
| Recharge mode 1 | EV DC Charger |
| Recharge mode 2 | AC 3-phase / 20 kW |
| Wheelbase | 1100 mm |
| Minimum ground clearance | 100 mm |
| Parking slope | 25% |
| Maximum gradeability at full load | 20% |
| Minimum turning radius | 2.5 m |
| Drive method | Rear-wheel drive |
| Front/rear brake type | Drum brake |
| Parking brake type | EPB electronic parking brake (rear wheels with speed sensors) |
| Drive motor power | 3 kW |
| Full-load range | Depends on the vehicle's total energy storage battery capacity |
| Speed range | 1–15 km/h |
| Control communication method | CAN 2.0B |
| Size | 2035 × 920 × 1491 mm |
| Weight | ≈1256 kg |
| Protection level | IP54 |

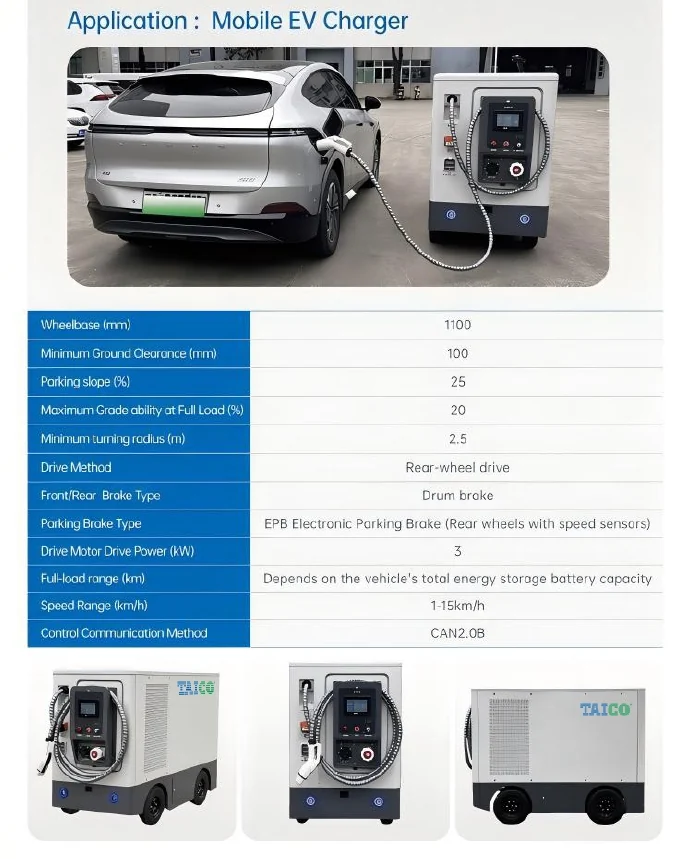

Catalog product photography
Published product view
This catalog image shows TKMC-1000 as published in TAICO MC 2026 Catalog v1.3. Final configuration must be confirmed for the project.
How to choose
Selection criteria in this family.
Travel path and grade
Review published wheelbase, ground clearance, parking slope, gradeability, and turning radius against the intended service path.
Energy and power class
The published robot lists 100 kWh battery capacity and 90 kW DC output. Confirm whether that class matches the intended service window.
Connector standard
The published model lists GB/T, CCS1, CCS2, and CHAdeMO. Confirm the project connector and vehicle mix before quotation.
Compatibility / configuration
Published interface and operating fields.
| Charging gun | GB/T / CCS1 / CCS2 / CHAdeMO |
|---|---|
| Output voltage | DC 200–1000 V |
| Output current | 0–150 A |
| Charge mode | Single-player / OCPP 1.6J |
| Charger cable length | 5 m |
Explore by challenge
Related knowledge
Read the supporting guides.
Buyer guide
Mobile EV Charger Buyer’s Guide: How to Choose a System
A practical buyer's guide to mobile EV charging formats, energy and power requirements, connectors, deployment conditions, and project qualification.
FAQ
Questions for this product family.
How is a charging robot different from a mobile charging system?
The published Charging Robot is self-propelled and includes robot mobility data. Mobile Charging Systems are transported energy storage chargers without that self-propelled format.
Where do these specifications come from?
Public product facts are transcribed from TAICO MC 2026 Catalog v1.3. Final operating configuration remains project-specific.
Evidence / documentation
Catalog source
Published specifications for TKMC-1000 are transcribed from TAICO MC 2026 Catalog v1.3, page 6. Request current project documentation for a configuration review.
