Site energy demand
Compare published battery capacities against energy demand between recharge periods. Published capacity is not a guarantee of energy delivered to vehicles; allow for operating reserves and conversion losses.
Stationary EV Charging Systems with Battery Storage →
TKMC-2000
TKMC-2000 Stationary EV Charger with Battery Storage
200 kWh · 120 kW
TAICO MC 2026 Catalog v1.3 · Page 10
Why this product
- +PV-storage charging
- +Grid-complementary deployment
Who it is for
- PV-Storage Charging Station
- Grid Complementary System
Catalog specification
Technical details
Published from TAICO MC 2026 Catalog v1.3, page 10.
| Battery capacity | 200 kWh |
|---|---|
| Output power | 120 kW |
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| HMI | 10" Touching Screen |
| Charge mode | Single-player / OCPP 1.6J |
| Working temperature | −10 °C to 60 °C |
| Charger cable length | 7 m |
| Charging gun | GB/T ×2 (CCS1 / CCS2 / CHAdeMO) |
| Recharge mode 1 | AC 3-phase / 30 kW |
| Recharge mode 2 | Solar PV-IN (optional) |
| Size | 1300 × 1100 × 2077 mm |
| Weight | ≈2161 kg |
| Protection level | IP54 |

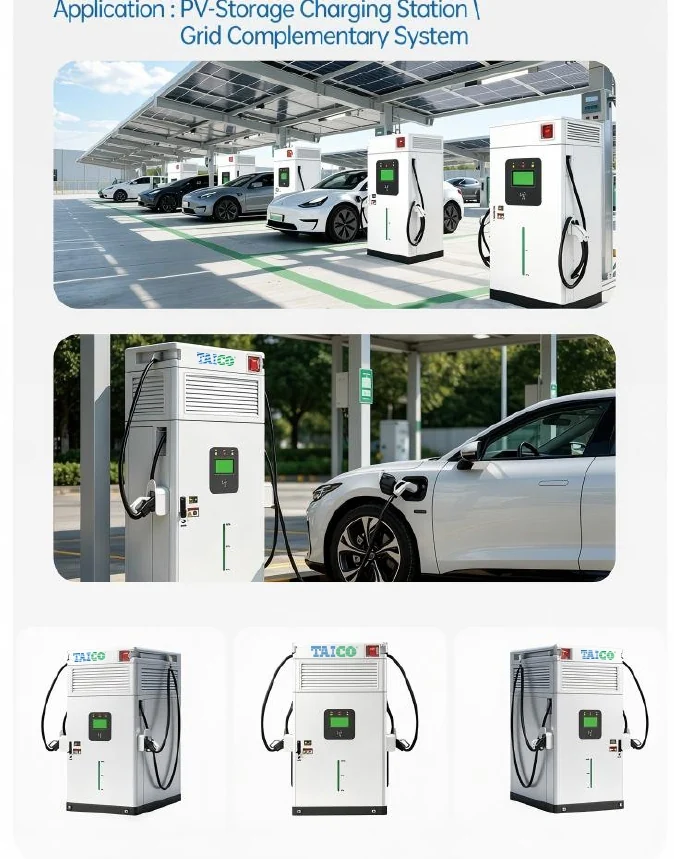

Catalog product photography
Published product view
This catalog image shows TKMC-2000 as published in TAICO MC 2026 Catalog v1.3. Final configuration must be confirmed for the project.
How to choose
Selection criteria in this family.
Grid connection and PV input
Both published models list AC three-phase recharge and optional solar PV-IN. Confirm whether PV input is required for the project.
Deployment type
Choose this family for stationary installation. Mobile charging, robot, and mobile power families cover transported or self-propelled formats.
Connector standard
Both published models list GB/T ×2 with CCS1, CCS2, and CHAdeMO options. Confirm the project connector configuration before quotation.
Compatibility / configuration
Published interface and operating fields.
| Charging gun | GB/T ×2 (CCS1 / CCS2 / CHAdeMO) |
|---|---|
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| Charge mode | Single-player / OCPP 1.6J |
| Charger cable length | 7 m |
Explore by challenge
For projects that need a separate storage cabinet alongside the charger, TAICO ESS publishes a range of cabinet ESS models.
Related products
Related knowledge
Read the supporting guides.
Buyer guide
Mobile EV Charger Buyer’s Guide: How to Choose a System
A practical buyer's guide to mobile EV charging formats, energy and power requirements, connectors, deployment conditions, and project qualification.
Technical explainer
kW vs. kWh in Mobile EV Charging
Understand the difference between charging power and stored energy, and why both values matter when specifying a mobile EV charging system.
FAQ
Questions for this product family.
What is stationary EV charging?
Stationary EV charging serves vehicles at a fixed site. This product family combines battery energy storage with DC charging. The catalog lists PV-storage charging stations and grid-complementary systems as its applications.
How should a buyer choose between TKMC-2000 and TKMC-2600?
TKMC-2000 has 200 kWh of battery capacity and 120 kW DC output. TKMC-2600 has 261 kWh and 120 kW DC output. Compare the AC recharge inputs in the table, then confirm grid connection, PV input, and installation scope. Higher battery capacity does not mean higher output power.
How does stationary charging differ from mobile charging equipment?
Choose stationary charging for a planned charging location. Choose transported mobile charging equipment when the service must bring stored energy to vehicles at different locations. Transport, site access, and recharge arrangements must match the operating plan.
Can a stationary charging system avoid a grid upgrade?
Grid-complementary operation does not guarantee that a site can avoid a grid upgrade. Review the available supply, charging demand, recharge schedule, and installation requirements.
What information is needed for a stationary charging quotation?
Provide the site location, available grid supply, daily charging energy demand, target vehicles, connector standard, charging schedule, and whether solar input is required. Confirm installation access and the operating plan with the project team.
Can these stationary EV charging systems use solar PV?
Both models list optional solar PV-IN. Confirm the PV input configuration, grid connection and charging connector requirements before quotation.
Evidence / documentation
Catalog source
Published specifications for TKMC-2000 are transcribed from TAICO MC 2026 Catalog v1.3, page 10. Request current project documentation for a configuration review.
Request documentationSignal · Request
Configure TKMC-2000 for your project
Share your vehicle, charging, power, and deployment requirements with the TAICO EV team.
