Daily energy demand
Use published battery capacity to shortlist a model against the intended energy handoff, then confirm reserve, recharge, and operating conditions.
Mobile Charging Systems →
TKMC-1500
TKMC-1500 140 kWh mobile EV charger
140 kWh · 120 kW
TAICO MC 2026 Catalog v1.3 · Page 5
Why this product
- +Mobile charging
Catalog specification
Technical details
Published from TAICO MC 2026 Catalog v1.3, page 5.
| Battery capacity | 140 kWh |
|---|---|
| Output power | 120 kW |
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| HMI | 7" Touching Screen |
| Charge mode | Single-player / OCPP 1.6J |
| Working temperature | −10 °C to 60 °C |
| Charger cable length | 7 m |
| Charging gun | GB/T / CCS1 / CCS2 / CHAdeMO |
| Recharge mode 1 | EV DC Charger |
| Recharge mode 2 | AC 3-phase / 40 kW |
| Size | 2300 × 1200 × 1000 mm |
| Weight | ≈1682 kg |
| Protection level | IP54 |

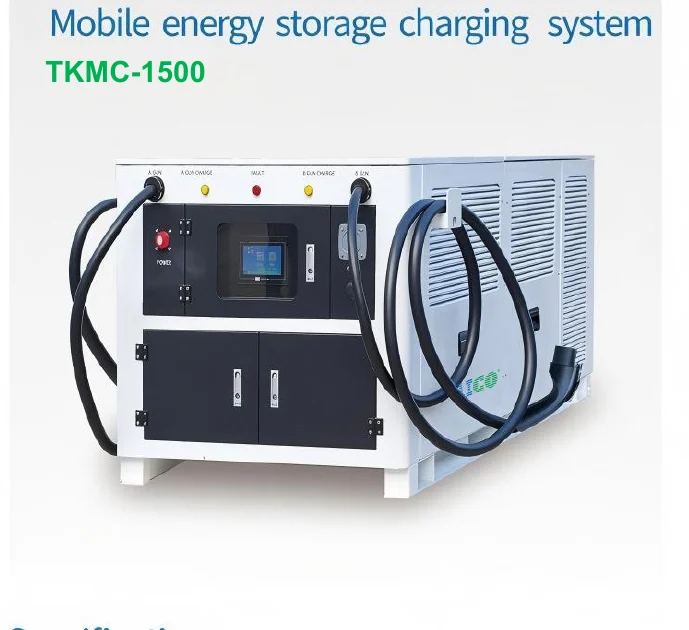

Catalog product photography
Published product view
This catalog image shows TKMC-1500 as published in TAICO MC 2026 Catalog v1.3. Final configuration must be confirmed for the project.
How to choose
Selection criteria in this family.
Required charging power
Use published DC output power as the output-power class. The receiving vehicle and configured charging path determine the actual session.
Connector standard
Both published models list GB/T, CCS1, CCS2, and CHAdeMO. Confirm the project connector, voltage range, and cable reach before quotation.
Mobility requirement
These systems are transported mobile chargers. If the service must drive the charger to the vehicle without a separate carrier, review the Charging Robot family.
Compatibility / configuration
Published interface and operating fields.
| Charging gun | GB/T / CCS1 / CCS2 / CHAdeMO |
|---|---|
| Output voltage | DC 200–1000 V |
| Output current | 0–250 A |
| Charge mode | Single-player / OCPP 1.6J |
| Charger cable length | 7 m |
Explore by challenge
Related products
Related knowledge
Read the supporting guides.
Roadside charging calculations
How Much Range Can a 20kW Mobile DC Charger Add in 20 Minutes?
Calculate energy and range from a 20kW mobile DC charger in 20 minutes. Compare power, battery capacity, and vehicle fit for roadside EV rescue.
Buyer guide
Mobile EV Charger Buyer’s Guide: How to Choose a System
A practical buyer's guide to mobile EV charging formats, energy and power requirements, connectors, deployment conditions, and project qualification.
Technical explainer
kW vs. kWh in Mobile EV Charging
Understand the difference between charging power and stored energy, and why both values matter when specifying a mobile EV charging system.
Operating workflow
How Roadside EV Charging Works: A 5-Step Rescue Workflow
A five-stage framework for dispatching a mobile charging system, confirming the vehicle connection, delivering emergency energy, and completing the handoff.
Roadside decision guide
Mobile EV Charging vs. Towing: A Decision Guide for Roadside Operators
A conditional guide for roadside operators comparing mobile EV charging with towing or recovery when an EV is stranded away from fixed charging infrastructure.
Procurement checklist
Mobile EV Chargers for Tow Trucks: A Procurement Checklist
A procurement checklist for mobile EV chargers in tow-truck and roadside assistance operations: transport, connectors, energy planning, and recharge.
FAQ
Questions for this product family.
How should a buyer choose between TKMC-800 and TKMC-1500?
Compare published battery capacity and DC output first: 75 kWh / 60 kW for TKMC-800 and 140 kWh / 120 kW for TKMC-1500. Then confirm vehicles, connectors, recharge source, and deployment constraints.
Where do these specifications come from?
Public product facts are transcribed from TAICO MC 2026 Catalog v1.3. Final operating configuration remains project-specific.
Evidence / documentation
Catalog source
Published specifications for TKMC-1500 are transcribed from TAICO MC 2026 Catalog v1.3, page 5. Request current project documentation for a configuration review.
Request documentationSignal · Request
Configure TKMC-1500 for your project
Share your vehicle, charging, power, and deployment requirements with the TAICO EV team.
